TB02/TB05 Bimetallic Thermal Switch High Precision Thermal Protector for HVAC, Appliances & Industrial Equipment

The TB02/TB05 Bimetallic Temperature Control Switch is a precision-engineered thermal protection device designed for automatic circuit interruption in overheating scenarios. Utilizing a bimetallic disc mechanism, this switch activates at preset temperature thresholds (customizable from 40°C to 160°C) to safeguard motors, compressors, transformers, and heating elements in HVAC systems, commercial appliances, and industrial machinery. Featuring SPDT (Single Pole Double Throw) contacts with silver alloy plating, it ensures reliable switching under 10A/250VAC loads while complying with UL and RoHS safety standards. Compact housing allows vertical/horizontal mounting in space-constrained environments.

Product feature:

• Fail-Safe Thermal Protection
  Dual metal snap-action technology triggers within ±3°C accuracy, preventing equipment damage from thermal runaway.
• Industry-Grade Durability
  Stainless steel actuator + ceramic terminal base withstands 10,000+ cycles at full load.
• Global Compliance Ready
  Pre-certified with UL, CE, and RoHS documentation for seamless integration into US/EU markets.
• Anti-Corrosion Design
  Hermetically sealed contacts resist oxidation in humid/vibratory environments.

Electrical Characteristics:

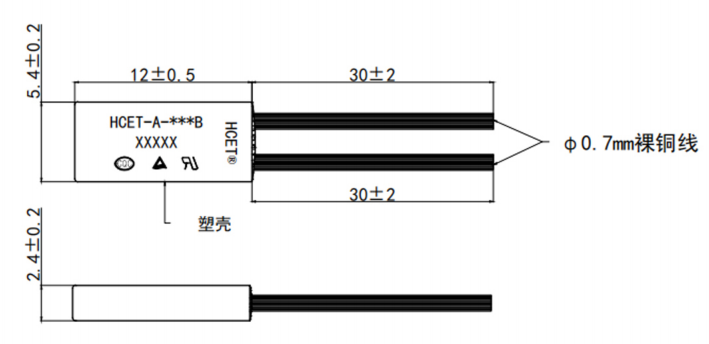

Dimension size

Product detail

Application

Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Luhe Economic Development Zone, is a national high-tech enterprise specializing in the production of high-end motor protectors, overcurrent protectors, thermostats, thermal protectors, temperature switches, temperature control switches, and temperature sensors. The company has passed the IATF16949 quality management system certification and has multiple independent patents. Its products have passed UL, TUV, CQC, and PSE international safety certification, The company adopts advanced automation equipment production technology, and its various series of products are widely used in fields such as glass lifter motors, wiper motors, seat motors, mixers, tubular motors, electric tools, battery packs, heating pads, new energy, etc. Haichuan embraces all rivers and pursues excellence. With professional technology, Haichuan is committed to providing reliable comprehensive solutions for overheating and overcurrent protection.
