Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads

Nanjing Haichuan Electronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads from wholesalers

    Buy cheap Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads from wholesalers
    • Buy cheap Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads from wholesalers
    • Buy cheap Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads from wholesalers
    • Buy cheap Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads from wholesalers

    Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads

    Ask Lasest Price
    Brand Name : HCET
    Model Number : VA1/VAA1
    Certification : CQC, UL, TUV, CE, ROHS
    Price : please contact us
    Payment Terms : T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

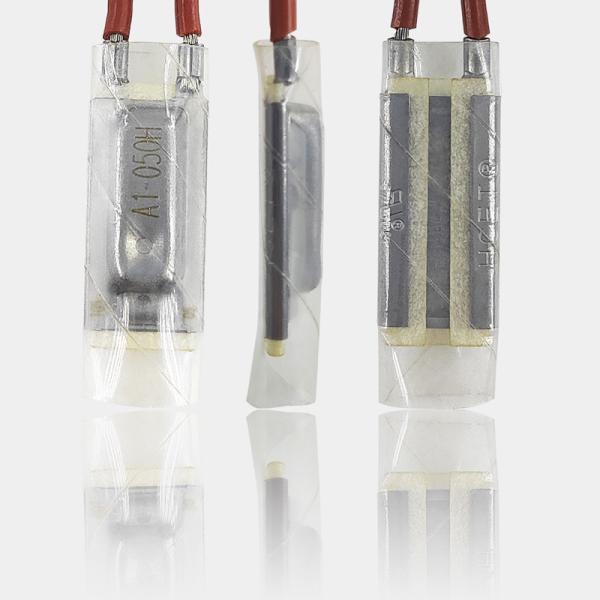

    Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads

    HCET VA1/VAA1 Precision Creep Action Thermostat PEPI Replacement 5A 120VAC Bimetal Thermal Protector for Therapeutic heating pads

    The HCET VA1/VAA1 Creep Action Thermostat is a high-performance thermal protector engineered for low-voltage, low-current applications (5A/120VAC). Designed as a direct replacement for PEPI thermostats, this precision bimetal device ensures reliable temperature control in heating pads, electric blankets, and small household appliances.

    Featuring a conductive bimetal construction, the VA1/VAA1 operates on a slow-make/slow-break mechanism to prevent arcing and extend lifespan, making it ideal for safety-critical applications. Pre-calibrated at the factory (±3°C/±5°C/±8°C tolerance) with no built-in differential, it guarantees consistent performance across temperatures from 5°C to 200°C.

    Certified for safety and durability, this thermostat is UL-compliant and available with insulated sleeving or pre-attached lead wires for seamless integration into OEM designs.

    Product feature:

    • Precision Temperature Control
      - Conductive bimetal element ensures accurate switching (±3°C tolerance option).
      - Pre-set calibration (5°C–200°C range) eliminates manual adjustments.
    • Enhanced Safety & Reliability
      - Slow-action switching minimizes electrical arcing in 24VDC/120VAC circuits.
      - Case insulation options (HC05-A/B) prevent accidental contact in compact designs.
    • Low-Voltage Optimization
      - Rated for 5A/120VAC residential/commercial and household appliances.
      - Ideal for electric blankets, heating pads, automotive seat warmers, and small medical devices.
    • Durable OEM Integration
      - Direct PEPI thermostat replacement with same size.
      - Factory-applied lead wires reduce assembly time and costs.
    • Global Compliance
      - UL-recognized components meet international safety standards for consumer electronics.

    Electrical Characteristics:


    0℃~200℃
    Temperature Range
    (Customizable temperature, please contact us.)
    ±3℃, ±5℃, ±8℃
    Temperature Tolerance
    VA1&VAA1: 2A/120VAC
    VA2&VAA2: 5A/120V AC
    Electrical Specifications


    Dimension size

    Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads


    Product detail

    Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads


    Application

    Precision Bimetal Creep Action Thermostat Switch 5A 120VAC Thermal Protector For Therapeutic Heating Pads
