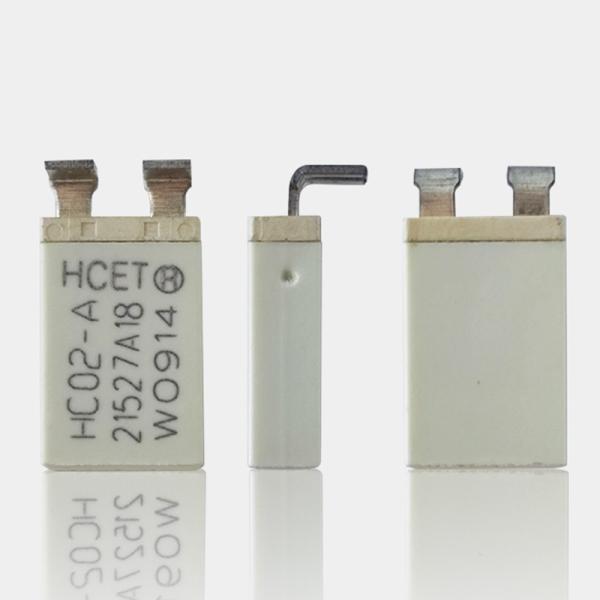

HC02 Series Motor Thermal Protector Thermal Cutout Switch Replacement for Otter DC 12V-30V for Automotive Motors

The HC02 Series Bimetallic Motor Overload Protector is a precision-engineered thermal protection device designed to safeguard DC motors

from overheating and current overloads in demanding automotive and industrial applications. Combining dual-sensitive bimetallic technology,

it responds to both temperature rise and excessive current, ensuring reliable protection for motors in critical systems such as automotive window regulators,

sunroof mechanisms, wiper motors, and HVAC actuators. Its compact, RoHS-compliant design meets strict automotive and industrial standards (IEC/UL),

making it ideal for OEMs seeking high-performance overload protection in space-constrained environments.

Product feature:

• Dual-Sensitive Protection
  - Bimetallic Technology: Simultaneously monitors temperature and current, triggering instant circuit disconnection at preset thresholds (4-10s response time).
  - Wide Range: Adjustable trip current (1-30A) and temperature (60°C-180°C ±8°C) for precise motor protection.
• Automotive-Grade Reliability
  - Engineered for DC 12V-30V automotive systems, including windshield wipers, power windows, sliding doors, and sunroof motors.
• Global Compliance & Safety
  - RoHS certified.
• Customizable Solutions
  - Optional terminal types and trip curve configurations for HVAC compressors, industrial pumps, and small appliances.
• Electrical Characteristics:

Dimension size

Product detail

Application

Nanjing Haichuan Electronic Co., Ltd., located in Nanjing Luhe Economic Development Zone, is a national high-tech enterprise specializing in the production of high-end motor protectors, overcurrent protectors, thermostats, thermal protectors, temperature switches, temperature control switches, and temperature sensors. The company has passed the IATF16949 quality management system certification and has multiple independent patents. Its products have passed UL, TUV, CQC, and PSE international safety certification, The company adopts advanced automation equipment production technology, and its various series of products are widely used in fields such as glass lifter motors, wiper motors, seat motors, mixers, tubular motors, electric tools, battery packs, heating pads, new energy, etc. Haichuan embraces all rivers and pursues excellence. With professional technology, Haichuan is committed to providing reliable comprehensive solutions for overheating and overcurrent protection.
